    ECS晶振,ECS-180-18-5PXEN,6G低成本晶振

  • 編號：20101471
  • 頻率：18MHz
  • 尺寸：11.4×4.8mm
  • RoHS
  • RoHS2
ECS晶振,CSM-7X無源晶振,ECS-180-18-5PXEN晶振,石英晶體諧振器,進口SMD晶振,頻率18MHz,負載18pF,工作溫度-40~85°C,頻率穩定性30ppm,無鉛環保晶振,高可靠性晶振,6G低成本晶振,智能手機晶振,平板電腦晶振,數字電表晶振...


ECS晶振,ECS-180-18-5PXEN,6G低成本晶振,ECS晶振,CSM-7X無源晶振,ECS-180-18-5PXEN晶振,石英晶體諧振器,進口SMD晶振,頻率18MHz,負載18pF,工作溫度-40~85°C,頻率穩定性30ppm,無鉛環保晶振,高可靠性晶振,6G低成本晶振,智能手機晶振,平板電腦晶振,數字電表晶振,兒童用游戲機晶振.
ECS晶振,ECS-180-18-5PXEN,6G低成本晶振特點：
•低成本SMD晶體的絕佳選擇
•低調
•行業標準封裝
•無鉛/符合RoHS標準

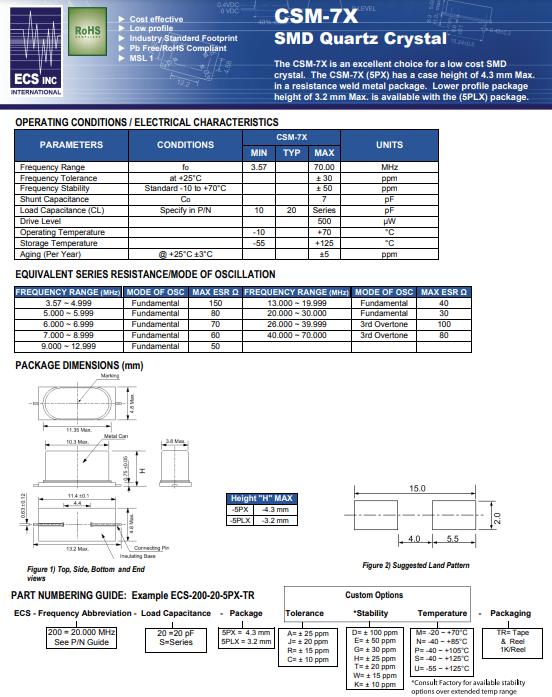

ECS晶振,ECS-180-18-5PXEN,6G低成本晶振參數表
參數 條件 CSM-7X
頻率   18MHz
頻率公差  at +25°C ± 30PPM
頻率穩定性 -10°C to +70°C ± 50PPM
負載電容 Specify in P/N 18pF
激勵功率 DL 500 μW Max
工作溫度
Topr
 -40°C to +85°C
保存溫度
Topr
 -55°C to +125°C
并聯電容
Co
 7.0 pF
老化 @ +25°C ±3°C ±5ppm

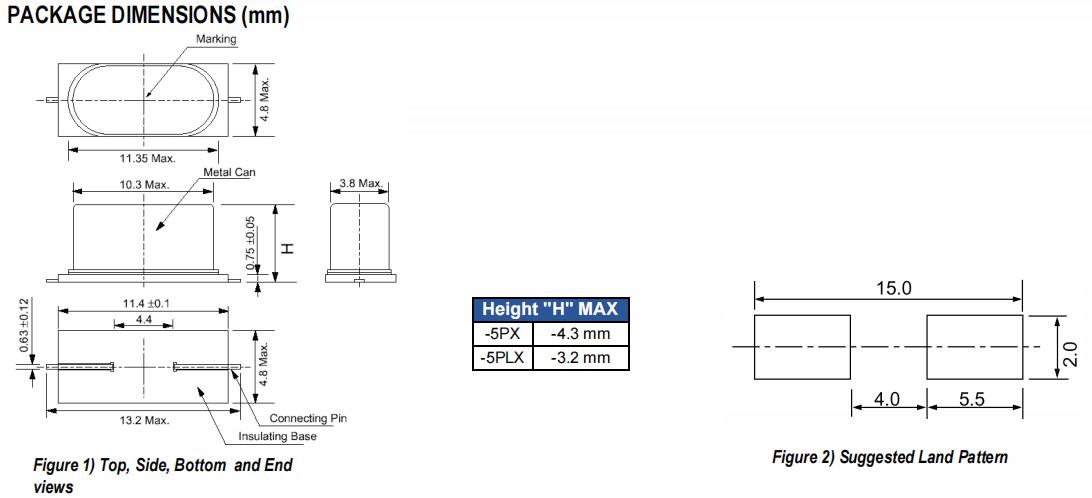

ECS晶振,ECS-180-18-5PXEN,6G低成本晶振尺寸圖


ECS原廠編碼 型號 頻率 頻率偏差 負載電容 工作溫度 包裝
ECS-100-18-5PX-TR CSM-7X 10MHz ±30ppm 18pF -10°C ~ 70°C HC49/US
ECS-100-S-5PX-TR CSM-7X 10MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-102.4-18-5PXEN CSM-7X 10.24MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-102.45-16-5PX-TR CSM-7X 10.245MHz ±30ppm 16pF -10°C ~ 70°C HC49/US
ECS-110.5-18-5PXEN-TR CSM-7X 11.0592MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-110.5-20-5PX-TR CSM-7X 11.0592MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-110.5-32-5PX-TR CSM-7X 11.0592MHz ±30ppm 32pF -10°C ~ 70°C HC49/US
ECS-110.5-S-5PX-TR CSM-7X 11.0592MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-110-18-5PXEN-TR CSM-7X 11MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-115.2-18-5PXEN CSM-7X 11.52MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-120.003-18-5PXEN CSM-7X 12.000393MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-120-18-5PX-TR CSM-7X 12MHz ±30ppm 18pF -10°C ~ 70°C HC49/US
ECS-120-32-5PX-TR CSM-7X 12MHz ±30ppm 32pF -10°C ~ 70°C HC49/US
ECS-120-S-5PX-TR CSM-7X 12MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-122.8-18-5PXEN-TR CSM-7X 12.288MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-122.8-20-5PX-TR CSM-7X 12.288MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-122.8-S-5PX-TR CSM-7X 12.288MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-135.6-12-5PX-TR CSM-7X 13.56MHz ±30ppm 12pF -10°C ~ 70°C HC49/US
ECS-135-18-5PXEN-TR CSM-7X 13.5168MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-143-18-5PXEN-TR CSM-7X 14.31818MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-143-20-5PX-TR CSM-7X 14.31818MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-143-S-5PX-TR CSM-7X 14.31818MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-147.4-18-5PXEN-TR CSM-7X 14.7456MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-147.4-20-5PX-TR CSM-7X 14.7456MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-147.4-S-5PX-TR CSM-7X 14.7456MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-150-18-5PXEN CSM-7X 15MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-150-S-5PX-TR CSM-7X 15MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-160.003-18-5PXEN-TR CSM-7X 16.000312MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-160.003-18-5PX-TR CSM-7X 16.000312MHz ±30ppm 18pF -10°C ~ 70°C HC49/US
ECS-160-18-5PXEN-TR CSM-7X 16MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-160-20-5PX-TR CSM-7X 16MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-160-S-5PX-TR CSM-7X 16MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-162.57-18-5PXEN-TR CSM-7X 16.257MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-163-18-5PXEN-TR CSM-7X 16.384MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-177.3-18-5PXEN CSM-7X 17.734475MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-180-18-5PXEN CSM-7X 18MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-180-S-5PX-TR CSM-7X 18MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-184-18-5PX-TR CSM-7X 18.432MHz ±30ppm 18pF -10°C ~ 70°C HC49/US
ECS-184-S-5PX-TR CSM-7X 18.432MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-196.6-18-5PXEN-TR CSM-7X 19.6608MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-196.6-20-5PX-TR CSM-7X 19.6608MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-200-16-5PX-TR CSM-7X 20MHz ±30ppm 16pF -10°C ~ 70°C HC49/US
ECS-200-18-5PXEN-TR CSM-7X 20MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-200-20-5PX-TR CSM-7X 20MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-200-S-5PX-TR CSM-7X 20MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-204.8-20-5PX CSM-7X 20.48MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-221-18-5PXEN-TR CSM-7X 22.1184MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-240-12-5PX-TR CSM-7X 24MHz ±30ppm 12pF -10°C ~ 70°C HC49/US
ECS-240-16-5PX-TR CSM-7X 24MHz ±30ppm 16pF -10°C ~ 70°C HC49/US
ECS-240-18-5PXEN-TR CSM-7X 24MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-240-20-5PX-TR CSM-7X 24MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-245.7-18-5PXEN-TR CSM-7X 24.576MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-245.7-20-5PX-TR CSM-7X 24.576MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-250-18-5PX-F-TR CSM-7X 25MHz ±30ppm 18pF -10°C ~ 70°C HC49/US
ECS-251.75-18-5PX-EN-TR CSM-7X 25.175MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-270-18-5PX-F-TR CSM-7X 27MHz ±30ppm 18pF -10°C ~ 70°C HC49/US
ECS-286.3-18-5PX-F-EN-TR CSM-7X 28.63636MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-320-18-5PXEN CSM-7X 32MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-35-17-5PX-TR CSM-7X 3.579545MHz ±30ppm 17pF -10°C ~ 70°C HC49/US
ECS-35-18-5PXEN-TR CSM-7X 3.579545MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-35-S-5PX-TR CSM-7X 3.579545MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-36-18-5PXEN-TR CSM-7X 3.6864MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-36-20-5PX-TR CSM-7X 3.6864MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-36-S-5PX-TR CSM-7X 3.6864MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-40.3-18-5PXEN CSM-7X 4.032MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-40.3-20-5PX-TR CSM-7X 4.032MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-40.3-S-5PX-TR CSM-7X 4.032MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-400-18-5PXEN CSM-7X 40MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-40-18-5PXEN-TR CSM-7X 4MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-40-20-5PX-TR CSM-7X 4MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-40-S-5PX-TR CSM-7X 4MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-41-18-5PXEN-TR CSM-7X 4.096MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-41-20-5PX-TR CSM-7X 4.096MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-42-12-5PX-TR CSM-7X 4.194304MHz ±30ppm 12pF -10°C ~ 70°C HC49/US
ECS-42-16-5PX-TR CSM-7X 4.194304MHz ±30ppm 16pF -10°C ~ 70°C HC49/US
ECS-42-18-5PXEN-TR CSM-7X 4.194304MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-44-20-5PX-TR CSM-7X 4.433618MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-480-18-5PXEN CSM-7X 48MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-480-20-5PX-TR CSM-7X 48MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-491.5-18-5PXEN CSM-7X 49.152MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-49-18-5PXEN-TR CSM-7X 4.9152MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-49-20-5PX-TR CSM-7X 4.9152MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-49-S-5PX-TR CSM-7X 4.9152MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-500-18-5PXEN CSM-7X 50MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-50-18-5PXEN-TR CSM-7X 5MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-50-20-5PX-TR CSM-7X 5MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-50-S-5PX-TR CSM-7X 5MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-51-18-5PXEN-TR CSM-7X 5.0688MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-51-20-5PX-TR CSM-7X 5.0688MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-52-32-5PX-TR CSM-7X 5.185MHz ±30ppm 32pF -10°C ~ 70°C HC49/US
ECS-59.9-20-5PX-TR CSM-7X 5.9904MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-60-18-5PXEN-TR CSM-7X 6MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-60-20-5PX-TR CSM-7X 6MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-60-32-5PX-TR CSM-7X 6MHz ±30ppm 32pF -10°C ~ 70°C HC49/US
ECS-60-S-5PX-TR CSM-7X 6MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-61-18-5PXEN-TR CSM-7X 6.144MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-61-32-5PX-TR CSM-7X 6.144MHz ±30ppm 32pF -10°C ~ 70°C HC49/US
ECS-65-18-5PXEN CSM-7X 6.5MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-73-18-5PXEN-TR CSM-7X 7.3728MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-73-20-5PX-TR CSM-7X 7.3728MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-73-S-5PX-TR CSM-7X 7.3728MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-76.8-18-5PXEN-TR CSM-7X 7.68MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-80-18-5PX-TR CSM-7X 8MHz ±30ppm 18pF -10°C ~ 70°C HC49/US
ECS-80-20-5PX CSM-7X 8MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-80-32-5PX-TR CSM-7X 8MHz ±30ppm 32pF -10°C ~ 70°C HC49/US
ECS-80-S-5PX-TR CSM-7X 8MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-92.1-20-5PX-TR CSM-7X 9.216MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-92.1-S-5PX-TR CSM-7X 9.216MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-98.3-18-5PXEN-TR CSM-7X 9.8304MHz ±30ppm 18pF -40°C ~ 85°C HC49/US
ECS-98.3-20-5PX-TR CSM-7X 9.8304MHz ±30ppm 20pF -10°C ~ 70°C HC49/US
ECS-98.3-S-5PX-TR CSM-7X 9.8304MHz ±30ppm Series -10°C ~ 70°C HC49/US
ECS-80-18-5PXDS-TR CSM-7X 8MHz ±30ppm 18pF -40°C ~ 125°C HC49/US
