    Skyworks晶振,545ABA125M000AAG,差分貼片晶振,6G基站晶振

  • 編號：19092106
  • 頻率：125MHz
  • 尺寸：7.0×5.0mm
  • RoHS
  • RoHS2
Skyworks晶振,Si545石英晶體振蕩器,545ABA125M000AAG晶振,差分貼片晶振,7050mm晶振,頻率125MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性25ppm,LVPECL輸出晶振,高穩定性晶振,低耗能晶振,6G基站晶振,無線網絡應用晶振,實...


Skyworks晶振,545ABA125M000AAG,差分貼片晶振,6G基站晶振 ,Skyworks晶振,Si545石英晶體振蕩器,545ABA125M000AAG晶振,差分貼片晶振,7050mm晶振,頻率125MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性25ppm,LVPECL輸出晶振,高穩定性晶振,低耗能晶振,6G基站晶振,無線網絡應用晶振,實時時鐘晶振,多媒體設備晶振.
Skyworks晶振,545ABA125M000AAG,差分貼片晶振,6G基站晶振特點：
●可與任何頻率從0.2MHz ~ 1500mhz
●超低抖動:80 fs類型RMS(12 kHz - 20 MHz)
●出色的PSNR和電源抗噪性:-80 dBc類型
●7 ppm穩定性選項(-40至85°C)
●3.3 V, 2.5 V和1.8 V VDD供電操作從相同的零件號
●LVPECL, LVDS, CML, HCSL, CMOS，和雙CMOS輸出選項
●2.5×3.2、3.2×5、5×7 mm包選項
●樣品交付周期為1-2周
Skyworks晶振,545ABA125M000AAG,差分貼片晶振,6G基站晶振參數表
項目 符號 規格說明 條件
額定頻率 f_nom 125MHz 請聯系我們以便獲取其它可用頻率的相關信息
電源電壓 Vcc 3.3V
儲存溫度 T_stg -55℃~+125℃ 裸存
工作溫度 T_use -40℃~ +85℃
頻率穩定性 f_tol ±25 ppm +25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流 IDD 153mA Max
LVPECL
對稱性（占空比） SYM 45%~55% 在輸出交叉點
輸出電壓 VOC 1.25V Max

VO 1.9Vpp Max
輸入電壓 VIH 70%VDD Min

VIL 30%VDD Max
上升下降時間 tr/tf 350ps Max
LVPECL
起始時間 t str 3ms Max
相位抖動 tpj 150fs Max
100 MHz ≤ FCLK < 200 MHz

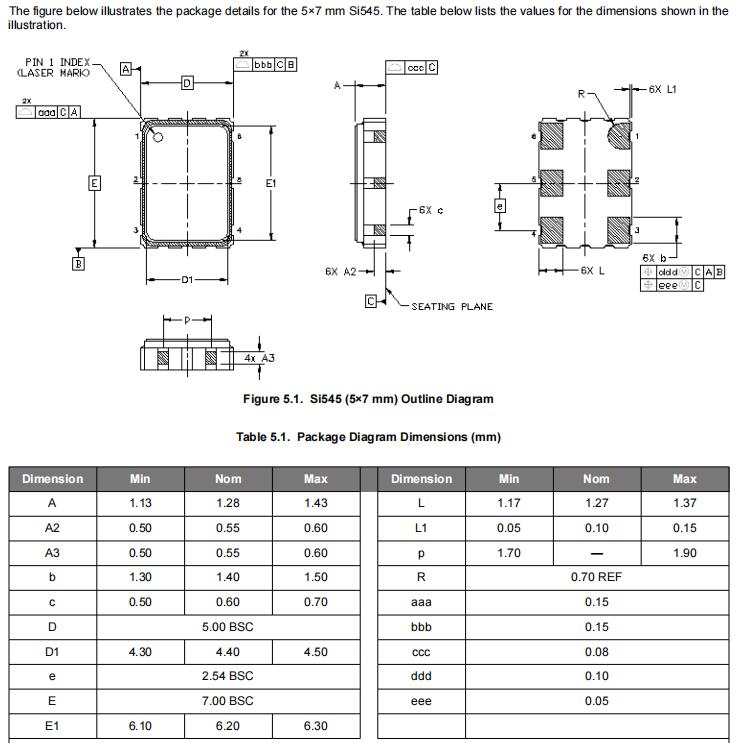

Skyworks晶振,545ABA125M000AAG,差分貼片晶振,6G基站晶振尺寸圖

原廠編碼 品牌 型號 頻率 輸出 電壓 頻率穩定性
545BAA200M000BBG Skyworks Solutions Inc. Ultra™ Si545 200 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545BAA000127BBG Skyworks Solutions Inc. Ultra™ Si545 644.53125 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545AAA125M000BAG Skyworks Solutions Inc. Ultra™ Si545 125 MHz LVPECL 2.5V, 3.3V ±20ppm
545BCA000127BBG Skyworks Solutions Inc. Ultra™ Si545 644.53125 MHz LVDS 1.8V, 2.5V, 3.3V ±7ppm
545AAA40M8000BBGR Skyworks Solutions Inc. Ultra™ Si545 40.8 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA50M0000BBGR Skyworks Solutions Inc. Ultra™ Si545 50 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAC100M000BBGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVPECL 2.5V, 3.3V ±20ppm
545BAA100M000ABGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545BAA106M250ABGR Skyworks Solutions Inc. Ultra™ Si545 106.25 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545BAA25M0000BBGR Skyworks Solutions Inc. Ultra™ Si545 25 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545BAA40M2500ABGR Skyworks Solutions Inc. Ultra™ Si545 40.25 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545BAA52M0000BBGR Skyworks Solutions Inc. Ultra™ Si545 52 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545BAA80M0000BBGR Skyworks Solutions Inc. Ultra™ Si545 80 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545BAB100M000BBGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545BAB122M880ABGR Skyworks Solutions Inc. Ultra™ Si545 122.88 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545CAA100M000ABGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA100M000BBGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA25M0000ABGR Skyworks Solutions Inc. Ultra™ Si545 25 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA33M8688BBGR Skyworks Solutions Inc. Ultra™ Si545 33.8688 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA36M8640BBGR Skyworks Solutions Inc. Ultra™ Si545 36.864 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA40M2500ABGR Skyworks Solutions Inc. Ultra™ Si545 40.25 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA48M0000BBGR Skyworks Solutions Inc. Ultra™ Si545 48 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA49M1520ABGR Skyworks Solutions Inc. Ultra™ Si545 49.152 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA50M0000BBGR Skyworks Solutions Inc. Ultra™ Si545 50 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA62M5000ABGR Skyworks Solutions Inc. Ultra™ Si545 62.5 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA75M0000ABGR Skyworks Solutions Inc. Ultra™ Si545 75 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545EAA100M000ABGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz HCSL 1.8V, 2.5V, 3.3V ±20ppm
545EAA100M000BBGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz HCSL 1.8V, 2.5V, 3.3V ±20ppm
545EAA16M8750BBGR Skyworks Solutions Inc. Ultra™ Si545 16.875 MHz HCSL 1.8V, 2.5V, 3.3V ±20ppm
545FAA22M5792BBGR Skyworks Solutions Inc. Ultra™ Si545 22.5792 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545FAA24M5760BBGR Skyworks Solutions Inc. Ultra™ Si545 24.576 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545GAA3M50000ABGR Skyworks Solutions Inc. Ultra™ Si545 3.5 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545GAA72M0000BBGR Skyworks Solutions Inc. Ultra™ Si545 72 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545AAA12M2880BBGR Skyworks Solutions Inc. Ultra™ Si545 12.288 MHz LVPECL 2.5V, 3.3V ±20ppm
545BAA106M250BBGR Skyworks Solutions Inc. Ultra™ Si545 106.25 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545AAA114M285BBGR Skyworks Solutions Inc. Ultra™ Si545 114.285 MHz LVPECL 2.5V, 3.3V ±20ppm
545BAA125M000BBGR Skyworks Solutions Inc. Ultra™ Si545 125 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545AAA25M0000BBGR Skyworks Solutions Inc. Ultra™ Si545 25 MHz LVPECL 2.5V, 3.3V ±20ppm
545BAA78M1250BBGR Skyworks Solutions Inc. Ultra™ Si545 78.125 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545AAA100M000BBGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVPECL 2.5V, 3.3V ±20ppm
545CAA10M0000BBGR Skyworks Solutions Inc. Ultra™ Si545 10 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545AAA40M0000BBGR Skyworks Solutions Inc. Ultra™ Si545 40 MHz LVPECL 2.5V, 3.3V ±20ppm
545DAB50M0000BBGR Skyworks Solutions Inc. Ultra™ Si545 50 MHz CML 1.8V, 2.5V, 3.3V ±20ppm
545AAA100M000BAGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA10M0000ABGR Skyworks Solutions Inc. Ultra™ Si545 10 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA10M0000BBGR Skyworks Solutions Inc. Ultra™ Si545 10 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA122M880BBGR Skyworks Solutions Inc. Ultra™ Si545 122.88 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA24M0000BBGR Skyworks Solutions Inc. Ultra™ Si545 24 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA30M0000ABGR Skyworks Solutions Inc. Ultra™ Si545 30 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA3M50000ABGR Skyworks Solutions Inc. Ultra™ Si545 3.5 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA3M50000BBGR Skyworks Solutions Inc. Ultra™ Si545 3.5 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA40M8000ABGR Skyworks Solutions Inc. Ultra™ Si545 40.8 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA3M50000BCGR Skyworks Solutions Inc. Ultra™ Si545 3.5 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BBA160M000ACG Skyworks Solutions Inc. Ultra™ Si545 160 MHz LVDS 1.8V ~ 3.3V ±10ppm
545BAA250M000ACG Skyworks Solutions Inc. Ultra™ Si545 250 MHz LVDS 1.8V ~ 3.3V ±20ppm
545BAA322M265ACG Skyworks Solutions Inc. Ultra™ Si545 322.265 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA322M265ACG Skyworks Solutions Inc. Ultra™ Si545 322.265 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545CBA24M0000ACG Skyworks Solutions Inc. Ultra™ Si545 24 MHz CMOS 1.8V ~ 3.3V ±10ppm
545CAA40M2500ACG Skyworks Solutions Inc. Ultra™ Si545 40.25 MHz CMOS 1.8V ~ 3.3V ±20ppm
545CCA125M000ACG Skyworks Solutions Inc. Ultra™ Si545 125 MHz CMOS 1.8V ~ 3.3V ±7ppm
545ACA10M0000ACG Skyworks Solutions Inc. Ultra™ Si545 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm
545BCA50M0015ACG Skyworks Solutions Inc. Ultra™ Si545 50.0015 MHz LVDS 1.8V ~ 3.3V ±7ppm
545FCA29M9700ACG Skyworks Solutions Inc. Ultra™ Si545 29.97 MHz CMOS 1.8V ~ 3.3V ±7ppm
545CAA49M1520ACG Skyworks Solutions Inc. Ultra™ Si545 49.152 MHz CMOS 1.8V ~ 3.3V ±20ppm
545CCA004671ACG Skyworks Solutions Inc. Ultra™ Si545 37.2116524 MHz CMOS 1.8V ~ 3.3V ±7ppm
545AAA312M500ACG Skyworks Solutions Inc. Ultra™ Si545 312.5 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545CBB8M46720ACG Skyworks Solutions Inc. Ultra™ Si545 8.4672 MHz CMOS 1.8V ~ 3.3V ±10ppm
545ECA100M000ACG Skyworks Solutions Inc. Ultra™ Si545 100 MHz HCSL 1.8V ~ 3.3V ±7ppm
545BAA106M250ACG Skyworks Solutions Inc. Ultra™ Si545 106.25 MHz LVDS 1.8V ~ 3.3V ±20ppm
545ACA40M0000ACG Skyworks Solutions Inc. Ultra™ Si545 40 MHz LVPECL 2.5V ~ 3.3V ±7ppm
545CCA100M000ACG Skyworks Solutions Inc. Ultra™ Si545 100 MHz CMOS 1.8V ~ 3.3V ±7ppm
545ABA312M500ACG Skyworks Solutions Inc. Ultra™ Si545 312.5 MHz LVPECL 2.5V ~ 3.3V ±10ppm
545CBA000376ACG Skyworks Solutions Inc. Ultra™ Si545 33.33333 MHz CMOS 1.8V ~ 3.3V ±10ppm
545ACA50M0000ACG Skyworks Solutions Inc. Ultra™ Si545 50 MHz LVPECL 2.5V ~ 3.3V ±7ppm
545AAA156M250ACG Skyworks Solutions Inc. Ultra™ Si545 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BAA700M000ACG Skyworks Solutions Inc. Ultra™ Si545 700 MHz LVDS 1.8V ~ 3.3V ±20ppm
545CAA75M0000ACG Skyworks Solutions Inc. Ultra™ Si545 75 MHz CMOS 1.8V ~ 3.3V ±20ppm
545CCA50M0000ACG Skyworks Solutions Inc. Ultra™ Si545 50 MHz CMOS 1.8V ~ 3.3V ±7ppm
545AAC130M000ACG Skyworks Solutions Inc. Ultra™ Si545 130 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545ECA19M2000ACG Skyworks Solutions Inc. Ultra™ Si545 19.2 MHz HCSL 1.8V ~ 3.3V ±7ppm
545BAA160M000BCG Skyworks Solutions Inc. Ultra™ Si545 160 MHz LVDS 1.8V ~ 3.3V ±20ppm
545BAA40M2500ACG Skyworks Solutions Inc. Ultra™ Si545 40.25 MHz LVDS 1.8V ~ 3.3V ±20ppm
545CAA25M0000ACG Skyworks Solutions Inc. Ultra™ Si545 25 MHz CMOS 1.8V ~ 3.3V ±20ppm
545CCA24M0000ACG Skyworks Solutions Inc. Ultra™ Si545 24 MHz CMOS 1.8V ~ 3.3V ±7ppm
545BAA000274ACG Skyworks Solutions Inc. Ultra™ Si545 322.265625 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA125M000BCGR Skyworks Solutions Inc. Ultra™ Si545 125 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BAA100M000BCGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA50M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 50 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545AAA25M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 25 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BAA100M000ACGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVDS 1.8V ~ 3.3V ±20ppm
545BAA25M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 25 MHz LVDS 1.8V ~ 3.3V ±20ppm
545CAA100M000BCGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz CMOS 1.8V ~ 3.3V ±20ppm
545AAA100M000BCGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545AAA114M285BCGR Skyworks Solutions Inc. Ultra™ Si545 114.285 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BAA125M000BCGR Skyworks Solutions Inc. Ultra™ Si545 125 MHz LVDS 1.8V ~ 3.3V ±20ppm
545EAA100M000ACGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz HCSL 1.8V ~ 3.3V ±20ppm
545CAA50M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 50 MHz CMOS 1.8V ~ 3.3V ±20ppm
545CCA10M0000CCGR Skyworks Solutions Inc. Ultra™ Si545 10 MHz CMOS 1.8V ~ 3.3V ±7ppm
545CCA10M0000ACGR Skyworks Solutions Inc. Ultra™ Si545 10 MHz CMOS 1.8V ~ 3.3V ±7ppm
545BAA10M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 10 MHz LVDS 1.8V ~ 3.3V ±20ppm
545CCA27M0000CCGR Skyworks Solutions Inc. Ultra™ Si545 27 MHz CMOS 1.8V ~ 3.3V ±7ppm
545ACA25M0000CCGR Skyworks Solutions Inc. Ultra™ Si545 25 MHz LVPECL 2.5V ~ 3.3V ±7ppm
545AAA80M0000ACGR Skyworks Solutions Inc. Ultra™ Si545 80 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BCA25M0000CCGR Skyworks Solutions Inc. Ultra™ Si545 25 MHz LVDS 1.8V ~ 3.3V ±7ppm
545BCA27M0000CCGR Skyworks Solutions Inc. Ultra™ Si545 27 MHz LVDS 1.8V ~ 3.3V ±7ppm
545CCB37M2000BCGR Skyworks Solutions Inc. Ultra™ Si545 37.2 MHz CMOS 1.8V ~ 3.3V ±7ppm
545EAA103M000ACGR Skyworks Solutions Inc. Ultra™ Si545 103 MHz HCSL 1.8V ~ 3.3V ±20ppm
545BAA65M0000CCGR Skyworks Solutions Inc. Ultra™ Si545 65 MHz LVDS 1.8V ~ 3.3V ±20ppm
545CAA80M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 80 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA98M5000ACGR Skyworks Solutions Inc. Ultra™ Si545 98.5 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545BAB125M000ACGR Skyworks Solutions Inc. Ultra™ Si545 125 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545CAA48M0000CCGR Skyworks Solutions Inc. Ultra™ Si545 48 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545AAA99M6000CCGR Skyworks Solutions Inc. Ultra™ Si545 99.6 MHz LVPECL 2.5V, 3.3V ±20ppm
545CAC33M0000ACGR Skyworks Solutions Inc. Ultra™ Si545 33 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545BAA100M000CCGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545CAA24M0000CCGR Skyworks Solutions Inc. Ultra™ Si545 24 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA50M0000CCGR Skyworks Solutions Inc. Ultra™ Si545 50 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545BAA125M000ACGR Skyworks Solutions Inc. Ultra™ Si545 125 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545AAA100M000BBG Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA10M0000ABG Skyworks Solutions Inc. Ultra™ Si545 10 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA10M0000BBG Skyworks Solutions Inc. Ultra™ Si545 10 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA122M880BBG Skyworks Solutions Inc. Ultra™ Si545 122.88 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA24M0000BBG Skyworks Solutions Inc. Ultra™ Si545 24 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA30M0000ABG Skyworks Solutions Inc. Ultra™ Si545 30 MHz LVPECL 2.5V, 3.3V ±20ppm
545AAA3M50000ABG Skyworks Solutions Inc. Ultra™ Si545 3.5 MHz LVPECL 2.5V, 3.3V ±20ppm
545DAA312M500ACG Skyworks Solutions Inc. Ultra™ Si545 312.5 MHz CML 1.8V ~ 3.3V ±20ppm
545CCA29M9700ACG Skyworks Solutions Inc. Ultra™ Si545 29.97 MHz CMOS 1.8V ~ 3.3V ±7ppm
545AAA30M0000ACG Skyworks Solutions Inc. Ultra™ Si545 30 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545AAA40M8000ACG Skyworks Solutions Inc. Ultra™ Si545 40.8 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BAB122M880ACG Skyworks Solutions Inc. Ultra™ Si545 122.88 MHz LVDS 1.8V ~ 3.3V ±20ppm
545CAA100M000ACG Skyworks Solutions Inc. Ultra™ Si545 100 MHz CMOS 1.8V ~ 3.3V ±20ppm
545CCA64M0000ACG Skyworks Solutions Inc. Ultra™ Si545 64 MHz CMOS 1.8V ~ 3.3V ±7ppm
545BAA160M000BCGR Skyworks Solutions Inc. Ultra™ Si545 160 MHz LVDS 1.8V ~ 3.3V ±20ppm
545FCA29M7900ACG Skyworks Solutions Inc. Ultra™ Si545 29.79 MHz CMOS 1.8V ~ 3.3V ±7ppm
545CCA44M8000ACG Skyworks Solutions Inc. Ultra™ Si545 44.8 MHz CMOS 1.8V ~ 3.3V ±7ppm
545AAC705M024ACG Skyworks Solutions Inc. Ultra™ Si545 705.024 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BAA156M250ACG Skyworks Solutions Inc. Ultra™ Si545 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm
545GAA3M50000ACG Skyworks Solutions Inc. Ultra™ Si545 3.5 MHz CMOS 1.8V ~ 3.3V ±20ppm
545ABA200M000ACG Skyworks Solutions Inc. Ultra™ Si545 200 MHz LVPECL 2.5V ~ 3.3V ±10ppm
545BCB147M500ACG Skyworks Solutions Inc. Ultra™ Si545 147.5 MHz LVDS 1.8V ~ 3.3V ±7ppm
545AAA10M0000ACG Skyworks Solutions Inc. Ultra™ Si545 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545CAA62M5000ACG Skyworks Solutions Inc. Ultra™ Si545 62.5 MHz CMOS 1.8V ~ 3.3V ±20ppm
545BBA156M250ACG Skyworks Solutions Inc. Ultra™ Si545 156.25 MHz LVDS 1.8V ~ 3.3V ±10ppm
545BAA644M500ACG Skyworks Solutions Inc. Ultra™ Si545 644.5 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA3M50000ACG Skyworks Solutions Inc. Ultra™ Si545 3.5 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BAA000292BCGR Skyworks Solutions Inc. Ultra™ Si545 161.1328 MHz LVDS 1.8V ~ 3.3V ±20ppm
545BAA233M333BCGR Skyworks Solutions Inc. Ultra™ Si545 233.333 MHz LVDS 1.8V ~ 3.3V ±20ppm
545CAA48M0000BCG Skyworks Solutions Inc. Ultra™ Si545 48 MHz CMOS 1.8V ~ 3.3V ±20ppm
545BAA000292BCG Skyworks Solutions Inc. Ultra™ Si545 161.1328 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA24M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 24 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BAC000274BCGR Skyworks Solutions Inc. Ultra™ Si545 322.265625 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA160M000BCG Skyworks Solutions Inc. Ultra™ Si545 160 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BAA40M2500ACGR Skyworks Solutions Inc. Ultra™ Si545 40.25 MHz LVDS 1.8V ~ 3.3V ±20ppm
545FCA29M9700ACGR Skyworks Solutions Inc. Ultra™ Si545 29.97 MHz CMOS 1.8V ~ 3.3V ±7ppm
545CCA44M8000ACGR Skyworks Solutions Inc. Ultra™ Si545 44.8 MHz CMOS 1.8V ~ 3.3V ±7ppm
545FAA22M5792BCGR Skyworks Solutions Inc. Ultra™ Si545 22.5792 MHz CMOS 1.8V ~ 3.3V ±20ppm
545BAA106M250BCG Skyworks Solutions Inc. Ultra™ Si545 106.25 MHz LVDS 1.8V ~ 3.3V ±20ppm
545BAA52M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 52 MHz LVDS 1.8V ~ 3.3V ±20ppm
545BAA106M250ACGR Skyworks Solutions Inc. Ultra™ Si545 106.25 MHz LVDS 1.8V ~ 3.3V ±20ppm
545EAA147M456BCGR Skyworks Solutions Inc. Ultra™ Si545 147.456 MHz HCSL 1.8V ~ 3.3V ±20ppm
545BAA233M333BCG Skyworks Solutions Inc. Ultra™ Si545 233.333 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA289M300BCG Skyworks Solutions Inc. Ultra™ Si545 289.3 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BBA000127BCGR Skyworks Solutions Inc. Ultra™ Si545 644.53125 MHz LVDS 1.8V ~ 3.3V ±10ppm
545AAC156M250BCG Skyworks Solutions Inc. Ultra™ Si545 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545DAA491M520BCGR Skyworks Solutions Inc. Ultra™ Si545 491.52 MHz CML 1.8V ~ 3.3V ±20ppm
545AAA3M50000ACGR Skyworks Solutions Inc. Ultra™ Si545 3.5 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545FAA22M5792BCG Skyworks Solutions Inc. Ultra™ Si545 22.5792 MHz CMOS 1.8V ~ 3.3V ±20ppm
545AAA000127BCGR Skyworks Solutions Inc. Ultra™ Si545 644.53125 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545AAA622M080BCG Skyworks Solutions Inc. Ultra™ Si545 622.08 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BBA004656BCG Skyworks Solutions Inc. Ultra™ Si545 148.425824 MHz LVDS 1.8V ~ 3.3V ±10ppm
545BAB400M000BCG Skyworks Solutions Inc. Ultra™ Si545 400 MHz LVDS 1.8V ~ 3.3V ±20ppm
545BAB100M000BCGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVDS 1.8V ~ 3.3V ±20ppm
545BAA625M000BCGR Skyworks Solutions Inc. Ultra™ Si545 625 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA40M0000BCG Skyworks Solutions Inc. Ultra™ Si545 40 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545CAA200M000BCG Skyworks Solutions Inc. Ultra™ Si545 200 MHz CMOS 1.8V ~ 3.3V ±20ppm
545BCA70M3235BCGR Skyworks Solutions Inc. Ultra™ Si545 70.3235 MHz LVDS 1.8V ~ 3.3V ±7ppm
545BAA644M500ACGR Skyworks Solutions Inc. Ultra™ Si545 644.5 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA289M300BCGR Skyworks Solutions Inc. Ultra™ Si545 289.3 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BAB266M525BCGR Skyworks Solutions Inc. Ultra™ Si545 266.525 MHz LVDS 1.8V ~ 3.3V ±20ppm
545DAA492M520BCG Skyworks Solutions Inc. Ultra™ Si545 492.52 MHz CML 1.8V ~ 3.3V ±20ppm
545BCB147M500ACGR Skyworks Solutions Inc. Ultra™ Si545 147.5 MHz LVDS 1.8V ~ 3.3V ±7ppm
545AAA10M0000ACGR Skyworks Solutions Inc. Ultra™ Si545 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BAA322M266BCGR Skyworks Solutions Inc. Ultra™ Si545 322.266 MHz LVDS 1.8V ~ 3.3V ±20ppm
545CAA10M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 10 MHz CMOS 1.8V ~ 3.3V ±20ppm
545BCA70M3235BCG Skyworks Solutions Inc. Ultra™ Si545 70.3235 MHz LVDS 1.8V ~ 3.3V ±7ppm
545AAC156M250BCGR Skyworks Solutions Inc. Ultra™ Si545 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545AAA160M000BCGR Skyworks Solutions Inc. Ultra™ Si545 160 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BAA80M0000BCG Skyworks Solutions Inc. Ultra™ Si545 80 MHz LVDS 1.8V ~ 3.3V ±20ppm
545BAB266M525BCG Skyworks Solutions Inc. Ultra™ Si545 266.525 MHz LVDS 1.8V ~ 3.3V ±20ppm
545BAC000274BCG Skyworks Solutions Inc. Ultra™ Si545 322.265625 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA10M0000BCG Skyworks Solutions Inc. Ultra™ Si545 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545ABA200M000ACGR Skyworks Solutions Inc. Ultra™ Si545 200 MHz LVPECL 2.5V ~ 3.3V ±10ppm
545BAB100M000BCG Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA12M2880BCG Skyworks Solutions Inc. Ultra™ Si545 12.288 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545ECA100M000ACGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz HCSL 1.8V ~ 3.3V ±7ppm
545CCA64M0000ACGR Skyworks Solutions Inc. Ultra™ Si545 64 MHz CMOS 1.8V ~ 3.3V ±7ppm
545AAA40M8000ACGR Skyworks Solutions Inc. Ultra™ Si545 40.8 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545CAA100M000ACGR Skyworks Solutions Inc. Ultra™ Si545 100 MHz CMOS 1.8V ~ 3.3V ±20ppm
545AAA10M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545CAA62M5000ACGR Skyworks Solutions Inc. Ultra™ Si545 62.5 MHz CMOS 1.8V ~ 3.3V ±20ppm
545AAA000274BCG Skyworks Solutions Inc. Ultra™ Si545 322.265625 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BBA000127BCG Skyworks Solutions Inc. Ultra™ Si545 644.53125 MHz LVDS 1.8V ~ 3.3V ±10ppm
545BAA80M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 80 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA40M8000BCG Skyworks Solutions Inc. Ultra™ Si545 40.8 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545CCA24M0000ACGR Skyworks Solutions Inc. Ultra™ Si545 24 MHz CMOS 1.8V ~ 3.3V ±7ppm
545BBA160M000ACGR Skyworks Solutions Inc. Ultra™ Si545 160 MHz LVDS 1.8V ~ 3.3V ±10ppm
545CAA48M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 48 MHz CMOS 1.8V ~ 3.3V ±20ppm
545GAA72M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 72 MHz CMOS 1.8V ~ 3.3V ±20ppm
545CBA80M0000BCG Skyworks Solutions Inc. Ultra™ Si545 80 MHz CMOS 1.8V ~ 3.3V ±10ppm
545CBA000376ACGR Skyworks Solutions Inc. Ultra™ Si545 33.33333 MHz CMOS 1.8V ~ 3.3V ±10ppm
545CAA33M8688BCGR Skyworks Solutions Inc. Ultra™ Si545 33.8688 MHz CMOS 1.8V ~ 3.3V ±20ppm
545GAA72M0000BCG Skyworks Solutions Inc. Ultra™ Si545 72 MHz CMOS 1.8V ~ 3.3V ±20ppm
545FCA29M7900ACGR Skyworks Solutions Inc. Ultra™ Si545 29.79 MHz CMOS 1.8V ~ 3.3V ±7ppm
545AAA000274BCGR Skyworks Solutions Inc. Ultra™ Si545 322.265625 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BBA004656BCGR Skyworks Solutions Inc. Ultra™ Si545 148.425824 MHz LVDS 1.8V ~ 3.3V ±10ppm
545BAA150M000BCGR Skyworks Solutions Inc. Ultra™ Si545 150 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA3M50000BCG Skyworks Solutions Inc. Ultra™ Si545 3.5 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545CCA10M0000CCG Skyworks Solutions Inc. Ultra™ Si545 10 MHz CMOS 1.8V ~ 3.3V ±7ppm
545BAB125M000ACG Skyworks Solutions Inc. Ultra™ Si545 125 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545BAA100M000CCG Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545AAA99M6000CCG Skyworks Solutions Inc. Ultra™ Si545 99.6 MHz LVPECL 2.5V, 3.3V ±20ppm
545CAA48M0000CCG Skyworks Solutions Inc. Ultra™ Si545 48 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA24M0000CCG Skyworks Solutions Inc. Ultra™ Si545 24 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA50M0000CCG Skyworks Solutions Inc. Ultra™ Si545 50 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545BAA125M000ACG Skyworks Solutions Inc. Ultra™ Si545 125 MHz LVDS 1.8V, 2.5V, 3.3V ±20ppm
545CAC33M0000ACG Skyworks Solutions Inc. Ultra™ Si545 33 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545CAA80M0000BCG Skyworks Solutions Inc. Ultra™ Si545 80 MHz CMOS 1.8V, 2.5V, 3.3V ±20ppm
545AAA125M000BCG Skyworks Solutions Inc. Ultra™ Si545 125 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545AAA25M0000BCG Skyworks Solutions Inc. Ultra™ Si545 25 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545AAA50M0000BCG Skyworks Solutions Inc. Ultra™ Si545 50 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545BAA125M000BCG Skyworks Solutions Inc. Ultra™ Si545 125 MHz LVDS 1.8V ~ 3.3V ±20ppm
545AAA114M285BCG Skyworks Solutions Inc. Ultra™ Si545 114.285 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545AAA100M000BCG Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545CAA50M0000BCG Skyworks Solutions Inc. Ultra™ Si545 50 MHz CMOS 1.8V ~ 3.3V ±20ppm
545BAA100M000BCG Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVDS 1.8V ~ 3.3V ±20ppm
545CAA100M000BCG Skyworks Solutions Inc. Ultra™ Si545 100 MHz CMOS 1.8V ~ 3.3V ±20ppm
545BAA25M0000BCG Skyworks Solutions Inc. Ultra™ Si545 25 MHz LVDS 1.8V ~ 3.3V ±20ppm
545BAA100M000ACG Skyworks Solutions Inc. Ultra™ Si545 100 MHz LVDS 1.8V ~ 3.3V ±20ppm
545EAA100M000ACG Skyworks Solutions Inc. Ultra™ Si545 100 MHz HCSL 1.8V ~ 3.3V ±20ppm
545CCB37M2000BCG Skyworks Solutions Inc. Ultra™ Si545 37.2 MHz CMOS 1.8V ~ 3.3V ±7ppm
545EAA103M000ACG Skyworks Solutions Inc. Ultra™ Si545 103 MHz HCSL 1.8V ~ 3.3V ±20ppm
545CCA27M0000CCG Skyworks Solutions Inc. Ultra™ Si545 27 MHz CMOS 1.8V ~ 3.3V ±7ppm
545CAA98M5000ACG Skyworks Solutions Inc. Ultra™ Si545 98.5 MHz CMOS 1.8V ~ 3.3V ±20ppm
545BAA65M0000CCG Skyworks Solutions Inc. Ultra™ Si545 65 MHz LVDS 1.8V ~ 3.3V ±20ppm
545BAA10M0000BCG Skyworks Solutions Inc. Ultra™ Si545 10 MHz LVDS 1.8V ~ 3.3V ±20ppm
545BCA27M0000CCG Skyworks Solutions Inc. Ultra™ Si545 27 MHz LVDS 1.8V ~ 3.3V ±7ppm
545BCA25M0000CCG Skyworks Solutions Inc. Ultra™ Si545 25 MHz LVDS 1.8V ~ 3.3V ±7ppm
545ACA25M0000CCG Skyworks Solutions Inc. Ultra™ Si545 25 MHz LVPECL 2.5V ~ 3.3V ±7ppm
545AAA80M0000ACG Skyworks Solutions Inc. Ultra™ Si545 80 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545CCA10M0000ACG Skyworks Solutions Inc. Ultra™ Si545 10 MHz CMOS 1.8V ~ 3.3V ±7ppm
545ACA000127BCG Skyworks Solutions Inc. Ultra™ Si545 644.53125 MHz LVPECL 2.5V ~ 3.3V ±7ppm
545GAA3M50000ACGR Skyworks Solutions Inc. Ultra™ Si545 3.5 MHz CMOS 1.8V ~ 3.3V ±20ppm
545EAA147M456BCG Skyworks Solutions Inc. Ultra™ Si545 147.456 MHz HCSL 1.8V ~ 3.3V ±20ppm
545AAA492M520BCG Skyworks Solutions Inc. Ultra™ Si545 492.52 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545CBA200M000BCG Skyworks Solutions Inc. Ultra™ Si545 200 MHz CMOS 1.8V ~ 3.3V ±10ppm
545AAX156M250ACGR Skyworks Solutions Inc. Ultra™ Si545 156.25 MHz - 1.8V ~ 3.3V ±20ppm
545AAB250M000BCG Skyworks Solutions Inc. Ultra™ Si545 250 MHz LVPECL 2.5V ~ 3.3V ±20ppm
545ACA20M0000BCGR Skyworks Solutions Inc. Ultra™ Si545 20 MHz LVPECL 2.5V ~ 3.3V ±7ppm
545BCA000127BCG Skyworks Solutions Inc. Ultra™ Si545 644.53125 MHz LVDS 1.8V ~ 3.3V ±7ppm

1.技術支持                                                                        2.客服咨詢
全方位技術指導,專業的技術支持讓您感受到                 專業的銷售團隊,耐心為您解答任何疑問,讓您的
前所未有的后顧無憂.                                                          消費得到保障.
3.質量保證，誠信為上                                                    4.提升業績,降低成本
我司以“以科技為動力，以質量求生存”為理念.               為您的產品量身訂制,免費取樣,
                                                                                              為您做到低成本,高效率.
深圳市康華爾電子有限公司
電 話: +86-755-27838351
手 機：13823300879
傳 真: +86-755-27883106
Q Q: 632862232
MSN: konuaer@163.com
E-mail：konuaer@163.com
網  址：http://tqlwapf.cn
地  址：廣東深圳市寶安寶安大道東95號浙商銀行大廈1905


相關產品

誠征下列地區 晶振 | 石英晶振 | 圓柱晶振 | 貼片晶振 | 陶瓷晶振 | 石英晶體諧振器 | 頻率元件 的合作伙伴：
深圳市 廣州市 北京 上海 東莞 佛山 中山 順德 珠海 杭州 溫州 武漢 長沙 南京 大連 長春 西安 鄭州 澳門 沈陽 南寧 昆明 濟南 重慶 成都
有源晶振,表晶,石英晶振,,貼片晶振,聲表面濾波器,陶瓷晶振,陶瓷霧化片,陶瓷濾波器,微孔霧化片,微孔霧化片,單片158KHz微孔霧化片,單片陶瓷霧化片,霧化片,進口晶振,F11聲表面濾波器,TO-39聲表面濾波器,3*3貼片聲表面濾波器,KDS晶振,愛普生晶振,精工晶振,村田晶振,京瓷晶振,NDK晶振,NX3225SANDK晶振,NX5032GANDK晶振,有源晶振,溫補晶振,KDS晶振DST310S,愛普生晶振FC-135,愛普生晶振MC-146,精工晶振SC-32S,精工晶振SSP-T7;
在線客服
在線客服
close
在線客服 康華爾微信號
康華爾公眾號
